Pafra network floor

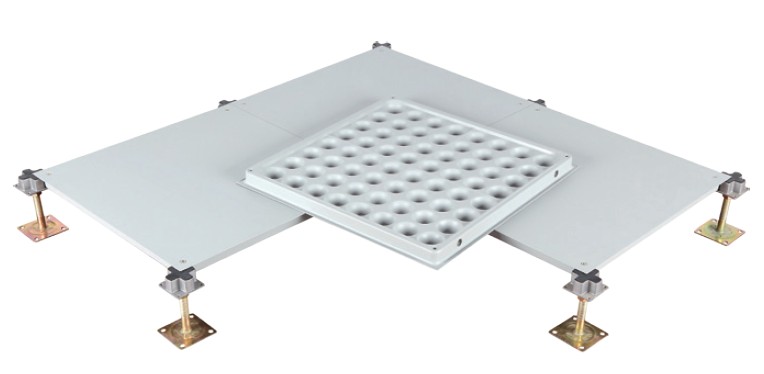

Name：Pafra 600 network floor
Details
FeaturesAll steel structure, good floor bearing capacity
Good fire performance
High dimensional accuracy, good interchangeability, easy installation and easy maintenance
Structure
OA all-steel floor shell is made of high quality cold rolled steel, stretched, spot welded, phosphatized, After spray molding, the inner cavity is filled with foamed cement and the corners are angled.
Application
All steel OA intelligent network floor is suitable for all kinds of 5A intelligent buildings, 5A office buildings and overhead The requirements and the network integrated wiring are more suitable for the ground modification of the old office building integrated wiring, and the carpet is laid on the surface.
Technical Parameters< Br />
| Model |
International Model |
Specification mm | Fire Performance |
Concentrated load LB N KG |
Impact Load N | limit load N | Uniform load N/M2 |
Rolling load N 10 times 10,000 times |
|||
| PFL-1201 | FS700 | 600×600×33 | A | ≥700 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥12500 | 2950 | 2356 |
| PFL-1202 | FS800 | 600×600×33 | A | ≥800 | ≥3550 | ≥363 | ≥536 | ≥ 11250 | ≥16100 | 3560 | 2670 |
| PFL-1203 | FS1000 | 600×600×33 | A | ≥1000 | ≥4450 | ≥453 | ≥670 | ≥ 13350 | ≥23000 | 4450 | 3560 |
| PFL-1204 | FS1250 | 600×600×33 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥ 16680 | ≥33000 | 5560 | 4450 |
